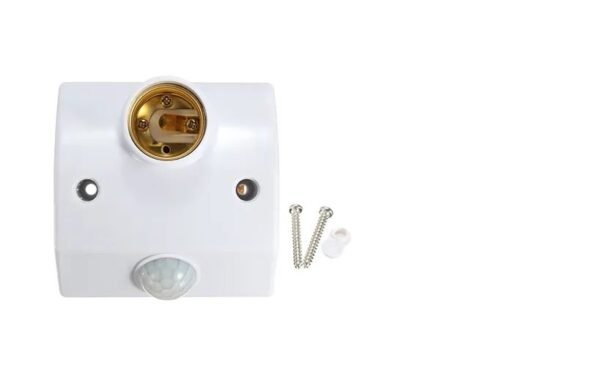

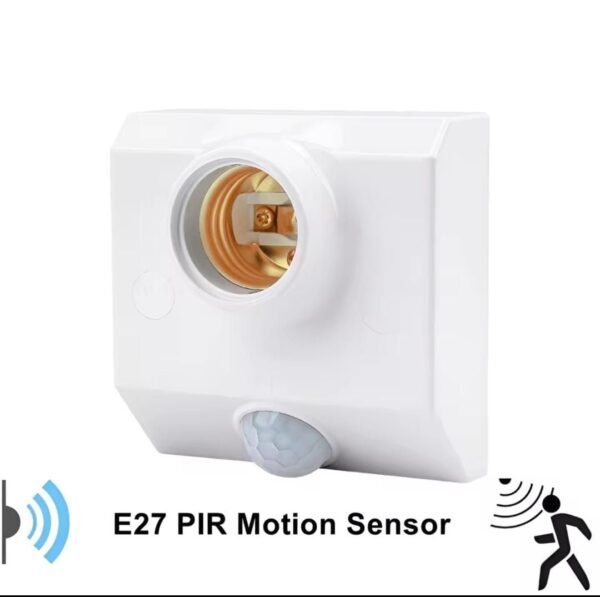

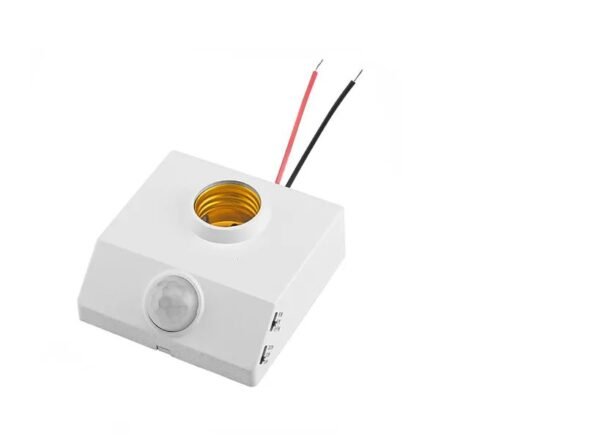

Automatic PIR Infrared Motion Sensor Lamp Holder – E27 Base

Product Description

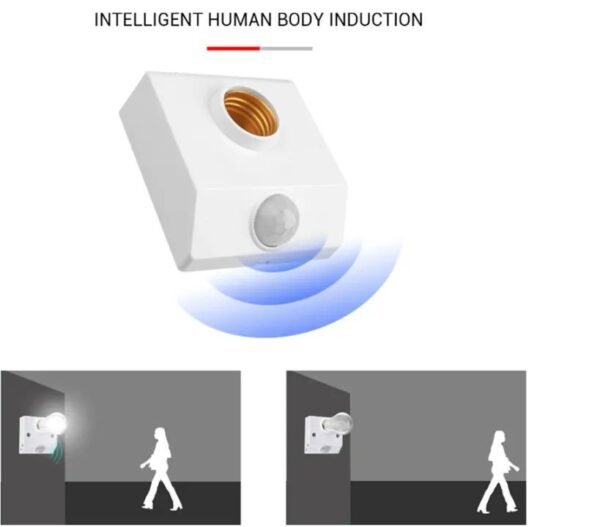

This Automatic Human Body Infrared (PIR) Motion Sensor Lamp Holder is designed to provide hands-free, energy-efficient lighting. Equipped with a sensitive PIR sensor, it detects human movement within seconds and automatically switches the connected bulb on or off. Ideal for hallways, staircases, storage rooms, garages, and other areas where convenient, automated lighting is needed.

Key Specifications

• Item Type: PIR Motion Sensor Lamp Holder

• Model: YX-425

• Induction Principle: Human body infrared detection

• Weight: Approx. 90g (3.2 oz)

• Product Size: 86 × 86 × 40 mm (approx. 8 × 8 × 4 cm / 3.1 × 3.1 × 1.6 in)

• Installation Hole Distance: 60 mm

• Working Voltage: AC 85–265V

• Voltage Range: AC 90V–240V compatible

• Output Power: <50W

• Working Temperature: -20°C to 40°C

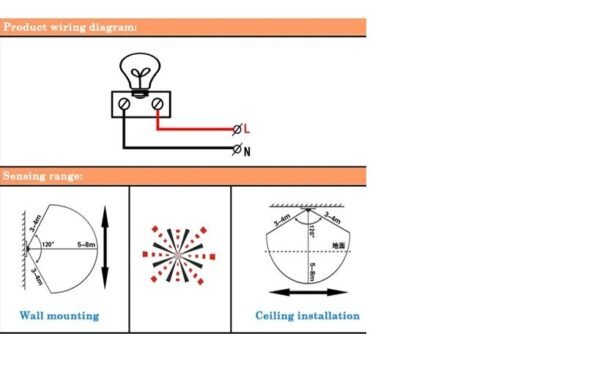

• Sensing Distance: Approx. 2–10 meters (6.6–32.8 ft), varies with ambient temperature

• Sensing Angle: 120° adjustable

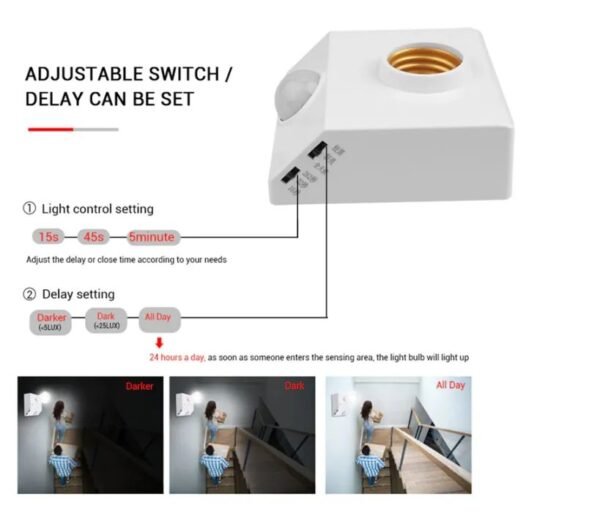

• Delay Time: 5 seconds to 3 minutes (adjustable; includes 25+5s mode)

• Light Control Sensitivity: 15 Lux ± 5 Lux

Features

• Automatic Motion Detection: Lights up when human movement is detected.

• Energy-Saving Operation: Automatically switches off after the set delay time.

• Wide Sensing Range: 120° detection angle and up to 10m sensing distance.

• Easy Installation: Standard E27 bulb socket compatibility.

• Ideal for Indoor Areas: Excellent for hallways, closets, bathrooms, stairways, and basements.

Note: The built-in photosensitive sensor prevents the lamp from turning on during daylight, which is a normal feature of this product.
